Proxy authentication is the mechanism a proxy server uses to verify that a connecting client has permission to use it. Without it, any device on the internet could route traffic through your proxy — running up your bandwidth, burning your IPs, and exposing your operations to interference.

The two dominant methods are username-password authentication, where credentials travel with every request in an HTTP header, and IP whitelisting, where the proxy grants access based on the source IP of the connecting machine. Each has a different security profile, a different failure mode, and a different fit for automated scraping stacks.

Understanding how proxy auth works at the protocol level makes misconfiguration errors easier to diagnose — and helps you pick the right method before you're debugging a silent authentication failure at scale.

Key Takeaways

• Proxy authentication is a challenge-response protocol: the proxy returns HTTP 407, the client retries with credentials in a Proxy-Authorization header (MDN, developer.mozilla.org/en-US/docs/Web/HTTP/Reference/Headers/Proxy-Authorization)
• Username-password auth sends credentials as Base64-encoded username:password — Base64 is not encryption; always use HTTPS tunneling (CONNECT method) when credentials are in transit
• IP whitelisting requires no credentials in your code, but breaks silently when your machine's IP changes (DHCP renewal, VPN toggle, mobile network switch)
• Most production scraping stacks use username-password auth because it survives IP changes and scales cleanly to multiple machines without dashboard changes

Proxy authentication is the process of verifying that a client — a script, browser, or tool — is authorized to send traffic through a proxy server. It serves two purposes: access control (only authorized users can use the proxy) and attribution (the provider knows whose traffic is whose for billing, rate limiting, and abuse prevention).

Every proxy provider implements at least one authentication method. The choice of method determines how credentials are handled, where they live in your codebase, how they degrade when things change, and what happens when they fail.

There are three methods in widespread use:

1. Username-password authentication — credentials embedded in the proxy connection string or HTTP headers
2. IP whitelisting — access granted to specific source IPs; no credentials required in requests
3. Token-based auth — a rotating or session-scoped token passed in headers or the proxy URL

Our finding: The most common proxy authentication failure mode isn't wrong credentials — it's IP whitelist entries that go stale. A machine running overnight scraping jobs changes IP at 3am via DHCP renewal, VPN reconnection, or cellular handover. The proxy starts rejecting every request with 407. Your scraper sees it as a generic connection failure. The actual cause — an expired whitelist entry — generates no descriptive error message. Username-password auth never has this problem. For unattended infrastructure, credentials in the connection string are more reliable than IP-based access.

proxy setup guide

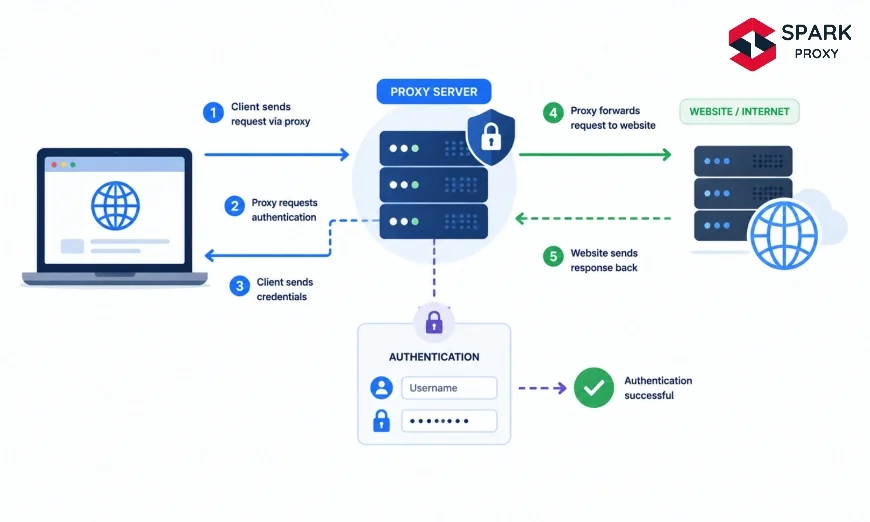

When a proxy requires authentication and a client connects without credentials, the proxy responds with HTTP status 407 Proxy Authentication Required along with a Proxy-Authenticate header describing the required auth scheme. The client then retries the request with a Proxy-Authorization header containing credentials.

The full exchange for HTTP (non-tunneled) requests:

```

1. Client → Proxy: GET http://example.com/ HTTP/1.1

Host: example.com

1. Proxy → Client: HTTP/1.1 407 Proxy Authentication Required

Proxy-Authenticate: Basic realm="SparkProxy"

1. Client → Proxy: GET http://example.com/ HTTP/1.1

Host: example.com

Proxy-Authorization: Basic dXNlcjpwYXNzd29yZA==

1. Proxy → Target: Forwards authenticated request
2. Target → Proxy: Response
3. Proxy → Client: Response forwarded

```

For HTTPS (tunneled) requests, the flow changes slightly because the client must establish a tunnel through the proxy using the CONNECT method before the TLS handshake with the target:

```

1. Client → Proxy: CONNECT example.com:443 HTTP/1.1

Host: example.com:443

Proxy-Authorization: Basic dXNlcjpwYXNzd29yZA==

1. Proxy → Client: HTTP/1.1 200 Connection Established

1. Client → Target: (TLS handshake through the tunnel)
2. Client → Target: Encrypted HTTPS request

```

Note that for HTTPS, the Proxy-Authorization header must be included in the CONNECT request, not in the encrypted request inside the tunnel — the proxy can't see inside the encrypted payload.

Username-password authentication is the most common proxy auth method for production use. Your credentials — a username and password assigned by your provider — are included in every connection attempt. No IP registration is required, and the same credentials work from any machine.

IP whitelisting grants access to the proxy based on the source IP address of the incoming connection. No credentials are required in your code — if your machine's public IP is on the provider's allowlist, requests go through. If it isn't, they're rejected with 407.

Some providers offer token-based authentication as an alternative to static username-password credentials. A token is a string — typically alphanumeric, 32–64 characters — that acts as an API key for the proxy connection.

Tokens appear in proxy URLs or headers in two formats:

In the proxy URL (treated as username):

```

http://@proxy.example.com:10000

```

As a Bearer token in headers:

```http

Proxy-Authorization: Bearer kNTktNTA1My00YzLT1234

```

Token-based auth offers one practical advantage over static username:password credentials: tokens can be scoped, rotated, or revoked independently. If a token is compromised, you rotate it without changing your account password. This is useful for CI/CD pipelines where credentials are stored as environment variables in deployment systems.

| Attribute | Username-Password | IP Whitelisting | Token-Based |

|-----------|------------------|-----------------|-------------|

| Credential location | HTTP header (Base64) | No credential in request | HTTP header or URL |

| Works from any IP | ✓ Yes | ✗ No — fixed IP required | ✓ Yes |

| Silent failure risk | Low — 407 on wrong password | High — IP changes silently | Low — expired token gives 407 |

| Setup complexity | Low | Medium (manage IP list) | Low to medium |

| Multi-machine support | ✓ Same credentials | ✗ Each IP whitelisted separately | ✓ Same or separate tokens |

| Credential exposure risk | Present (Base64 reversible) | None (no credential) | Present (token in URL/header) |

| Rotate without downtime | ✓ With overlap period | N/A | ✓ Token swap |

| Best for | Most production scraping | Fixed-IP dedicated servers | API-integrated or CI/CD workflows |

| Error | Likely Cause | Fix |

|-------|-------------|-----|

| 407 Proxy Authentication Required | Credentials missing, wrong, or IP not whitelisted | Check credentials or whitelist your current IP |

| 407 with valid credentials | Username/password correct but special characters in password not URL-encoded | Percent-encode special chars: @ → %40, : → %3A |

| 407 from IP whitelist | Source IP changed (DHCP, VPN, cloud restart) | Update whitelist in provider dashboard |

| 403 Forbidden (not 407) | Authentication passed but your plan doesn't include access to this proxy type or region | Check plan permissions in dashboard |

| Connection refused | Wrong proxy host or port | Verify host/port string — common mistake is using HTTP port on SOCKS endpoint |

| SSL/TLS error through proxy | Library trying to verify proxy cert instead of tunneling | Ensure you're using CONNECT tunneling for HTTPS targets |

Special characters in passwords are the most common silent misconfiguration in username-password auth. If your password contains @, :, /, ?, or #, these need to be percent-encoded in the proxy URL string. Otherwise the URL parser splits the credential on the wrong character and sends a truncated password.

Example — password p@ss:w0rd! in a URL:

```

Wrong — parser reads 'p' as password, '@ss:w0rd!' as host

http://user:p@ss:[email protected]:10000

Correct — special chars encoded

http://user:p%40ss%[email protected]:10000

```

Use HTTPS connections. Basic auth credentials are Base64-encoded, not encrypted. Over a plaintext HTTP connection, they're visible to anyone intercepting traffic between your machine and the proxy. When you connect to an HTTPS target through a proxy using the CONNECT method, the Proxy-Authorization header is sent in the CONNECT request — which is plaintext — before the TLS tunnel is established. Ensure your proxy endpoint itself supports or enforces a secure transport layer if credential interception is a concern for your threat model.

Don't hardcode credentials in source files. Use environment variables or a secrets manager. Credentials committed to version control are one of the most common causes of credential leakage.

Rotate credentials on team changes. If a team member who had access to proxy credentials leaves, rotate them. Most providers support creating sub-users with independent credentials specifically for this reason — you revoke the sub-user without affecting other jobs.

Apply the principle of least privilege. If your provider supports sub-users with plan restrictions (bandwidth caps, allowed proxy types, rate limits), apply the minimum necessary to each credential set. A credential used only for residential IP access shouldn't also have access to your datacenter pool.

Audit credential usage. Check your provider dashboard regularly for unexpected usage spikes under your credentials. A 10× bandwidth spike you didn't initiate means either a misconfigured script or a leaked credential.

proxy security best practices

For most scraping and automation use cases, username-password authentication is the more reliable default. It works from any machine, survives IP changes, scales to multiple machines without dashboard updates, and produces clear 407 errors when something is wrong.

IP whitelisting works well on stable server infrastructure where you control the IP and can guarantee it won't change. It keeps secrets out of your code entirely — which is a genuine security benefit in environments where code is shared or audited.

Token-based auth fits best in CI/CD pipelines and API-integrated workflows where credential rotation and scope control matter.

The security rule applies to all three: always transmit proxy credentials over encrypted connections, always store credentials in environment variables rather than source code, and always rotate credentials when access changes.

SparkProxy supports username-password authentication with sub-user management, IP whitelisting, and token-based access — configurable per account. See our authentication documentation for setup guides by platform.
