Every time a request travels through a proxy, load balancer, or CDN, the origin server loses sight of who actually sent it. The TCP connection arrives from the proxy's IP address, not the client's. Proxy headers solve this: they carry the original client IP and other request context across intermediaries so your application can act on accurate data.

The most widely used is X-Forwarded-For. But it's one piece of a larger picture. The Forwarded header standardized by RFC 7239, the X-Real-IP shorthand common in Nginx setups, the Via hop-by-hop indicator, and the X-Forwarded-Proto / X-Forwarded-Host pair each carry different information and behave differently under attack conditions.

If you're building rate limiters, enforcing geo-based access controls, running a reverse proxy setup, or analyzing traffic through a proxy network, you need to know exactly what each header does, which one to trust, and where the security traps are.

Key Takeaways

• X-Forwarded-For is a de facto standard (not an IETF spec) and any client can forge it before your proxy appends its hop, making the leftmost IP untrustworthy for access control (OWASP WSTG, 2023).
• RFC 7239's Forwarded header (IETF, 2014) is the standardized replacement with structured syntax and IP obfuscation support.
• Trust only the rightmost IP added by a proxy you control, never the leftmost value sent by the client.

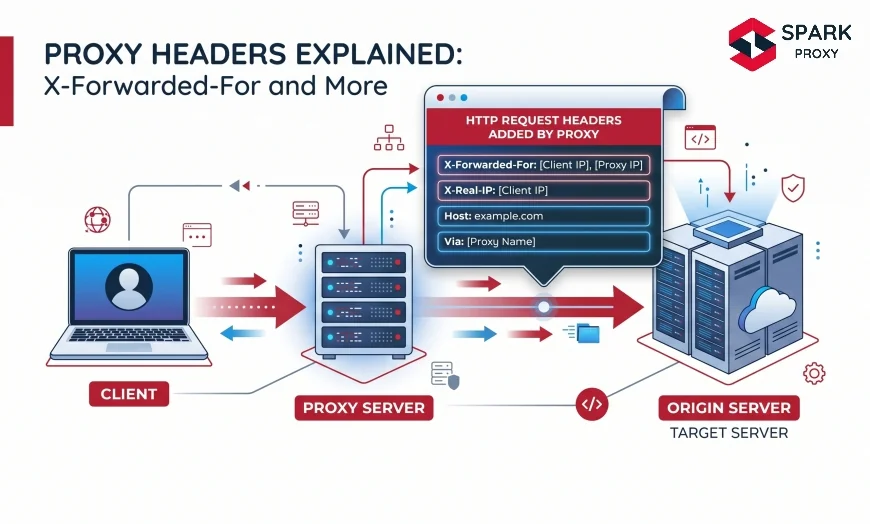

HTTP proxy headers are request headers added or modified by intermediary nodes (proxies, load balancers, CDNs, gateways) as a request travels from a client to an origin server. According to Mozilla's MDN Web Documentation (MDN, 2024), X-Forwarded-For is now present in virtually every production web stack that sits behind a reverse proxy, making it one of the most commonly processed HTTP headers in existence. Without proxy headers, your application can't identify the real user from a proxied connection.

Without them, your application can't:

• Enforce per-user rate limiting without blocking the proxy's shared IP
• Apply accurate geo-restrictions or routing rules
• Log real visitor IPs for analytics and security investigation
• Feed IP reputation systems with accurate source data

There are two functional categories:

| Category | Headers | Purpose |

|---|---|---|

| Client IP forwarding | X-Forwarded-For, X-Real-IP, Forwarded | Pass original client address through intermediaries |

| Request metadata | Via, X-Forwarded-Proto, X-Forwarded-Host, X-Forwarded-Port | Preserve protocol, hostname, and port context |

Which headers arrive at your origin depends entirely on how each proxy in your chain is configured. That variability is the source of both flexibility and risk.

According to MDN Web Docs, X-Forwarded-For became a de facto standard after widespread adoption by proxies like Squid starting in the early 2000s. It remains the most universally supported IP-forwarding mechanism, present in Nginx, Apache, HAProxy, Cloudflare, and AWS ALB deployments without a formal IETF specification until RFC 7239 addressed it in 2014 (MDN Web Docs, 2024).

See our forward proxy architecture guide for how these intermediary chains form.

X-Forwarded-For is supported by virtually every proxy and CDN vendor, making it the default mechanism for IP forwarding in production environments despite having no formal IETF specification until RFC 7239 indirectly addressed the problem in 2014 (IETF, 2014). Squid introduced the header in the early 2000s and its adoption spread quickly because it solved the real-origin-IP problem without requiring any changes to the underlying HTTP specification.

IETF published RFC 7239 in June 2014 to replace the fragmented X-Forwarded-* family with a single, formally specified header using structured key-value syntax (IETF RFC 7239, Petersson et al., 2014). It consolidates the client IP, proxy IP, original host, and protocol into one line, replacing four separate headers with one standard:

```

Forwarded: for=203.0.113.45;proto=https;host=example.com;by=10.0.0.1

```

The parameters map directly to their X-Forwarded-* equivalents:

| Parameter | Replaces | Example |

|---|---|---|

| for | X-Forwarded-For | for=203.0.113.45 |

| by | Proxy IP identification | by=10.0.0.1 |

| host | X-Forwarded-Host | host=example.com |

| proto | X-Forwarded-Proto | proto=https |

IPv6 addresses require quoting:

```

Forwarded: for="[2001:db8::1]";proto=https

```

RFC 7239 also supports IP obfuscation, a feature X-Forwarded-For doesn't have:

```

Forwarded: for=unknown;proto=https

Forwarded: for="_obfuscated-token-1";proto=https

```

This matters when forwarding requests through third-party systems where you need to signal that forwarding occurred without exposing the actual client IP. It's the right choice for GDPR-conscious architectures that need to log forwarding metadata without persisting real IPs.

From what we've seen across production deployments, RFC 7239 adoption has been slowest in self-hosted Nginx and Apache setups, where X-Forwarded-For defaults still dominate configuration templates. Cloud-native load balancers (Google Cloud Load Balancing, AWS ALB) support both formats, but generate X-Forwarded-For alongside Forwarded for backward compatibility rather than as a replacement. Expect transition periods to run long.

According to IETF RFC 7239 (Petersson et al., 2014), the Forwarded header was designed to consolidate and formalize the fragmented set of X-Forwarded-* headers into a single interoperable standard. The specification explicitly acknowledges that backward compatibility with X-Forwarded-For requires both headers to coexist during migration. As of 2025, most major CDNs support Forwarded but don't default to it, leaving X-Forwarded-For as the practical standard for existing deployments (IETF RFC 7239, 2014).

See how these headers affect proxy anonymity levels and what information each level exposes.

HTTP proxy infrastructure has accumulated several headers beyond the X-Forwarded-* family. Each carries specific information the IP forwarding headers don't provide, and knowing when to use each one avoids common configuration mistakes.

Production stacks layer headers from multiple intermediaries, and each layer follows its own defaults. Here's what actually happens at each platform.

Nginx appends to X-Forwarded-For when you include proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;. The $proxy_add_x_forwarded_for variable appends $remote_addr to any existing value, building the chain correctly. Without this directive, Nginx passes whatever the upstream sent without modification, which can result in headers being stripped or duplicated.

Cloudflare sets CF-Connecting-IP to the real visitor IP at the network edge (Cloudflare Developer Docs, 2024). This header is set by Cloudflare's infrastructure, not the client, so it can't be forged by users the way X-Forwarded-For can. Enterprise plans also receive True-Client-IP with the same value. These CDN-native headers are the right choice for IP-based decisions when you're already behind Cloudflare.

AWS Application Load Balancer always appends to X-Forwarded-For, always sets X-Forwarded-Proto to http or https, and adds X-Forwarded-Port automatically (AWS Documentation, 2024). There's no option to disable this behavior.

HAProxy requires the explicit option forwardfor directive to add X-Forwarded-For. It can also strip existing values from untrusted sources before adding its own:

```

option forwardfor except 0.0.0.0/0

```

This tells HAProxy to strip any incoming X-Forwarded-For from all sources before appending its own hop, which prevents client injection entirely.

When your stack has three or more layers (client → CDN → ALB → Nginx → app), the final header can contain three to four IP addresses. Your application needs to know exactly how many trusted proxy hops sit in front of it to extract the right IP from the chain. The number of hops also affects how proxy ports route requests across network boundaries.

According to Cloudflare's developer documentation (Cloudflare, 2024), CF-Connecting-IP is populated at the Cloudflare network edge and cannot be overridden by visitor-controlled request headers. This makes it a reliable source for the original visitor IP in all Cloudflare-protected deployments, unlike X-Forwarded-For which remains vulnerable to client-side injection unless the proxy explicitly strips pre-existing values before appending.

OWASP's Web Security Testing Guide (OWASP WSTG v4.2, 2023) identifies IP-based access controls that trust client-supplied proxy headers as a documented high-risk vector. The vulnerability is consistent: any HTTP client can set X-Forwarded-For before the request reaches your infrastructure, and unless your proxy strips it, the forged value becomes part of a chain that looks authentic.

The attack is two lines:

```bash

curl https://example.com/admin-panel \

-H "X-Forwarded-For: 10.0.0.1"

```

If your application grants admin access to 10.0.0.1 (an internal IP), the attacker bypasses the control with zero sophistication. This class of attack is also used to impersonate trusted IPs for IP blacklisting bypass and rate limit evasion.

Vulnerable pattern (do not use):

```python

Flask — UNSAFE

def get_real_ip():

return request.headers.get("X-Forwarded-For", "").split(",")[0].strip()

```

Safe pattern with known proxy count:

```python

Flask — SAFE

def get_real_ip(request, trusted_proxy_count=1):

xff = request.headers.get("X-Forwarded-For", "")

ips = [ip.strip() for ip in xff.split(",") if ip.strip()]

if len(ips) > trusted_proxy_count:

return ips[-(trusted_proxy_count + 1)]

return request.remote_addr # fall back to direct TCP connection IP

```

The same principle applies in Node.js (Express trust proxy setting), PHP (Laravel TrustedProxies middleware), and Go (net/http reverse proxy handling).

Additional hardening steps:

• Strip at the edge. Configure your outermost proxy to delete any incoming X-Forwarded-For before adding its own. In HAProxy: http-request del-header X-Forwarded-For placed before option forwardfor.
• Use CDN-native headers. Behind Cloudflare, trust CF-Connecting-IP instead of X-Forwarded-For.
• Validate IP format before use. A malformed string in X-Forwarded-For can cause unexpected parsing behavior in downstream code. Validate that extracted values match IPv4 or IPv6 format before acting on them.
• Log the full chain for forensics. Don't log only the resolved IP. Keep the full X-Forwarded-For value for security investigations.

Spoofed headers also corrupt IP reputation scoring by letting bad-faith traffic impersonate known-clean IP addresses, which is why stripping at the edge matters beyond just your own application.

A common mistake in Express.js is setting app.set('trust proxy', true) rather than specifying a CIDR. The boolean true trusts all proxies in the chain, which restores the spoofing vulnerability the setting is supposed to prevent. Always use app.set('trust proxy', '10.0.0.0/8') with explicit trusted ranges.

Once you understand the trust model, reading the right IP is a matter of framework configuration. Most frameworks let you declare trusted proxies so they resolve the correct IP automatically without requiring custom header-parsing logic.

Node.js (Express):

```javascript

// Declare your trusted proxy CIDR — don't use true (trusts everything)

app.set('trust proxy', '10.0.0.0/8');

// Express resolves req.ip to the correct client IP automatically

const clientIp = req.ip;

```

Python (Django):

```python

settings.py — required for HTTPS detection behind TLS terminator

SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https')

USE_X_FORWARDED_HOST = True

views.py — REMOTE_ADDR is rewritten by Django's security middleware

def view(request):

client_ip = request.META.get('REMOTE_ADDR')

```

PHP (Laravel):

```php

// app/Http/Middleware/TrustProxies.php

protected $proxies = ['10.0.0.0/8'];

protected $headers = Request::HEADER_X_FORWARDED_FOR

| Request::HEADER_X_FORWARDED_HOST

| Request::HEADER_X_FORWARDED_PORT

| Request::HEADER_X_FORWARDED_PROTO;

// Controller — resolves correctly once TrustProxies is active

$clientIp = $request->ip();

```

The pattern across all frameworks: declare which IP ranges are trusted proxies, then let the framework subtract trusted hops from the end of the chain. Don't write your own leftmost-IP extraction logic.

Want to understand how the transparent proxy modifies requests differently from anonymous proxies? The header behavior changes significantly depending on proxy type.

Our finding: When analyzing production multi-proxy stacks, we've consistently found that most IP extraction bugs trace back to one of two misconfiguration patterns: (1) reading the leftmost X-Forwarded-For IP without stripping edge-injected values, or (2) trusting app.set('trust proxy', true) in Express, which accepts all forwarded IPs rather than a specific trusted range. Both fixes take under 10 minutes to implement.

Proxy headers are the connective tissue between a client, its intermediaries, and your origin server. X-Forwarded-For handles the job in most deployments, but its informal origins mean it carries real security risks when misconfigured. RFC 7239's Forwarded header is the direction the standard points, though the transition will take years.

The practical rules to keep in mind:

• Read the rightmost IP your trusted proxy added, not the leftmost client-supplied value
• Strip incoming X-Forwarded-For at your outermost edge before appending your own
• Use CDN-native headers (CF-Connecting-IP) when you're already behind a CDN
• Adopt Forwarded (RFC 7239) for new infrastructure that needs IP obfuscation
• Always validate extracted IPs before using them in access decisions or rate limiting

Understanding what's in these headers, and what isn't, keeps your rate limiting, geo-logic, and security controls accurate regardless of how many proxy hops sit in front of your application.
