Understanding Proxy Protocols: HTTP, HTTPS, and SOCKS5

The protocol you configure on a proxy connection isn't a minor implementation detail. It determines what traffic the proxy can handle, what information it reads from your requests, how authentication works, and whether the target server can observe anything beyond your proxy's IP address.

Three protocols cover most real-world proxy use cases: HTTP, HTTPS (via the CONNECT tunnel), and SOCKS5. Each operates at a different layer of the network stack and makes different trade-offs between compatibility, privacy, and traffic type support.

This guide explains how each protocol works under the hood, where each one fits, and how to choose between them for your specific workflow.

Key Takeaways

• HTTP proxies operate at the application layer and can read, modify, or cache HTTP request headers — making them unsuitable for any traffic you want to keep private from the proxy itself
• HTTPS proxies establish a TLS tunnel between client and destination using the HTTP CONNECT method (RFC 9110), so the proxy sees only destination hostname and port, not request content
• SOCKS5 (RFC 1928) operates below the application layer and proxies raw TCP and UDP streams — it's protocol-agnostic and produces no headers that identify the traffic as proxied
• For web scraping and data collection: SOCKS5 offers the broadest compatibility; HTTP/HTTPS proxies are simpler to configure with standard HTTP clients

A proxy protocol defines the communication rules your client uses to establish a connection through a proxy server and route traffic to a destination. Choosing the wrong protocol for your use case means either exposing request data to the proxy, breaking non-HTTP traffic, or running into authentication failures mid-session.

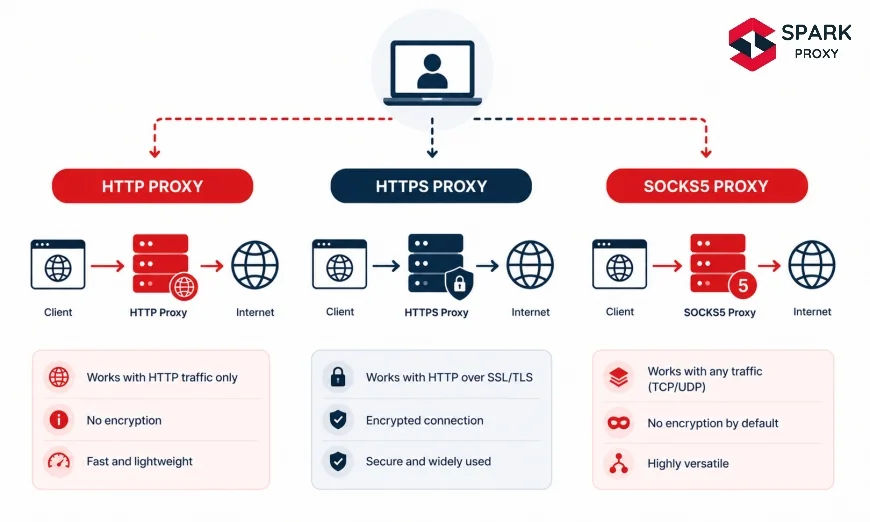

The three protocols in common use differ primarily in where they intercept the connection:

• HTTP proxies operate at OSI Layer 7 (application layer). They read and forward HTTP requests directly.
• HTTPS proxies use the HTTP CONNECT method to open a Layer 4 (transport layer) tunnel that the proxy doesn't decrypt.
• SOCKS5 proxies operate at Layer 5 (session layer), between the transport and application layers. They forward raw TCP or UDP streams without inspecting content.

Layer position matters because it controls what the proxy can observe. An HTTP proxy knows your full request URI, all headers, and the request body. A SOCKS5 proxy knows only the destination IP or hostname and port.

how proxy detection works

An HTTP proxy receives your full HTTP request, reads it at the application layer, and forwards it to the destination server in your name. The target server responds to the proxy, which then passes the response back to you.

The request flow looks like this:

1. Your client sends a standard HTTP request to the proxy's IP and port, with the full destination URL in the request line: GET http://target.com/path HTTP/1.1
2. The proxy parses the request, strips or modifies headers as configured, and opens its own connection to target.com
3. The proxy forwards the request from its own IP — the target server sees the proxy's address, not yours
4. The response travels back through the proxy to your client

Because the proxy reads the full request, it can cache responses, filter content, modify headers, and log request details. This makes HTTP proxies useful for caching layers and content filtering, but it also means the proxy operator has full visibility into your unencrypted traffic.

An HTTPS proxy uses the HTTP CONNECT method to establish an encrypted tunnel between your client and the destination server. The proxy doesn't decrypt the traffic inside the tunnel — it sees only the hostname and port your client requests, then acts as a transparent TCP relay for everything that follows.

This is the same mechanism your browser uses when accessing any https:// URL through a corporate proxy. You get TLS encryption end-to-end; the proxy gets only connection metadata.

SOCKS5 is defined in RFC 1928 (March 1996) and operates as a session-layer protocol — a "shim" between the application layer and the transport layer (IETF, RFC 1928, 1996). It doesn't understand HTTP, SMTP, FTP, or any other application protocol. It forwards raw streams.

The practical consequence: SOCKS5 works with any TCP-based protocol, and it's the only proxy protocol in this group that also handles UDP.

The right protocol depends on your traffic type, privacy requirements, and the tools you're using.

| Feature | HTTP Proxy | HTTPS Proxy (CONNECT) | SOCKS5 Proxy |

|---------|-----------|----------------------|-------------|

| OSI layer | 7 (Application) | 4 (Transport tunnel) | 5 (Session) |

| Protocols supported | HTTP only | HTTP + HTTPS (any TCP via CONNECT) | Any TCP; UDP |

| Proxy reads request content | Yes | No | No |

| Proxy reads request headers | Yes | No (only CONNECT line) | No |

| Adds X-Forwarded-For header | Often (configurable) | No | No |

| Authentication support | Basic, Digest (407) | Basic, Digest (407) | None, username/password, GSSAPI |

| IPv6 support | Depends on implementation | Depends on implementation | Yes (native in spec) |

| DNS resolution location | Client or proxy | Client or proxy | Client or proxy (ATYP domain) |

| Typical default port | 8080 / 3128 | 8080 / 3128 | 1080 |

| Best for | Simple HTTP scraping, caching | HTTPS scraping, browser automation | Multi-protocol, UDP, max compatibility |

Choose HTTP when: you're scraping plain HTTP endpoints, need proxy-level caching, or your tooling doesn't support SOCKS.

Choose HTTPS (CONNECT) when: you're making HTTPS requests and want TLS end-to-end — which is most production web scraping today.

Choose SOCKS5 when: you need maximum protocol flexibility, want to avoid any proxy-added headers, support non-HTTP traffic, or want proxy-side DNS resolution to avoid DNS leaks.

choosing the right proxy type for your workflow

Here's how to configure each proxy protocol in the most common client tools.

Python — requests with HTTP/HTTPS proxy:

```python

import requests

proxies = {

"http": "http://user:[email protected]:8080",

"https": "http://user:[email protected]:8080", # CONNECT tunnel

}

response = requests.get("https://example.com", proxies=proxies)

```

Note: the https entry still uses http:// scheme — this tells requests to use the HTTP CONNECT tunnel to establish the HTTPS connection.

Python — requests with SOCKS5 (requires requests[socks]):

```python

import requests

proxies = {

"http": "socks5://user:[email protected]:1080",

"https": "socks5://user:[email protected]:1080",

}

response = requests.get("https://example.com", proxies=proxies)

```

Use socks5h:// instead of socks5:// to send DNS resolution to the proxy server rather than resolving locally — this prevents DNS leaks.

curl — HTTP proxy:

```bash

curl -x http://user:[email protected]:8080 https://example.com

```

curl — SOCKS5 with proxy-side DNS:

```bash

curl --socks5-hostname user:[email protected]:1080 https://example.com

```

Environment variables (works with curl, wget, and many CLI tools):

```bash

export http_proxy="http://user:[email protected]:8080"

export https_proxy="http://user:[email protected]:8080"

export ALL_PROXY="socks5h://user:[email protected]:1080"

```

proxy configuration code examples for major scraping libraries

Route your traffic through clean, authenticated proxies. SparkProxy supports HTTP, HTTPS, and SOCKS5 protocols across residential, ISP, datacenter, and mobile IP networks. View proxy plans →

HTTP, HTTPS, and SOCKS5 proxies handle traffic at fundamentally different layers. An HTTP proxy reads and can modify your requests. An HTTPS CONNECT proxy tunnels encrypted traffic it can't see. SOCKS5 forwards raw streams without any application-layer involvement.

For most production scraping and data collection over HTTPS, both HTTPS CONNECT and SOCKS5 provide adequate privacy from the proxy itself. SOCKS5 is the more flexible choice when you need protocol-agnostic routing, proxy-side DNS, or UDP support. HTTP proxies are useful for caching layers and environments where your tooling only supports the HTTP proxy format.

Protocol choice matters less than IP quality and rotation strategy once you've ruled out HTTP proxy header leakage. For a deeper look at those trade-offs, see our guides on residential proxy IP types and block rates and proxy rotation and session management.
