Key Takeaways

• Proxy rotation assigns a different exit IP to each request (or group of requests), preventing any single IP from accumulating enough traffic to trigger a rate limit or ban.
• Most commercial rotating proxy services use a backconnect gateway — you connect to one endpoint and the provider handles exit IP selection internally.
• The four main rotation strategies are round-robin, random, sticky session, and error-triggered. Choosing the wrong one for your use case directly affects success rates.
• Pool sizing follows a simple formula: minimum IPs needed = peak requests per hour ÷ site rate limit per IP per hour. Add 10–20× headroom in practice.
• IP rotation eliminates one detection vector, not all. TLS fingerprinting, request timing, and header patterns each require separate mitigation.

Proxy rotation is the practice of cycling through a pool of IP addresses across outgoing requests. No single IP sends enough traffic to trigger rate limiting, block lists, or behavioral detection from the target server.

Without rotation, every request from your scraper or automation tool exits from the same IP address. Target servers observe traffic on a per-origin basis. When one IP sends 200 product pages in two minutes, the rate limiter fires. With rotation, those 200 requests exit across a pool of IPs — or across enough IPs that none individually crosses the threshold.

[INTERNAL-LINK: anchor="what is an IP address" target="what-is-an-ip-address-and-why-it-matters-for-proxies"]

The business benefit is direct: higher request volume without triggering defensive systems, which means more data collected per unit of time and fewer failed runs.

Every web server observes the source IP address of each incoming TCP connection. When a single IP sends requests far faster than a human can browse, servers infer automated traffic and apply rate limits.

RFC 6585 (April 2012) formalized HTTP status code 429 Too Many Requests for exactly this scenario. Section 4 defines it as: "The user has sent too many requests in a given amount of time ('rate limiting')." Servers can include a Retry-After header telling the client when it can retry.

That's the first line of defense. Modern anti-bot platforms — Cloudflare Bot Management, Akamai Bot Manager, DataDome, PerimeterX/HUMAN Security — go further. They score each request against dozens of signals: request velocity, IP reputation, TLS fingerprint, user agent, header order, and JavaScript challenge results. IP reputation is one input, but it's often the first filter applied. An IP sending 400 requests per minute doesn't reach behavioral scoring — it gets hard-blocked at the rate limiter first.

Removing the IP-level block is the necessary first step before anything else can work.

Citation: RFC 6585 "Additional HTTP Status Codes," Section 4 — Mark Nottingham & Roy T. Fielding, April 2012 — datatracker.ietf.org/doc/html/rfc6585

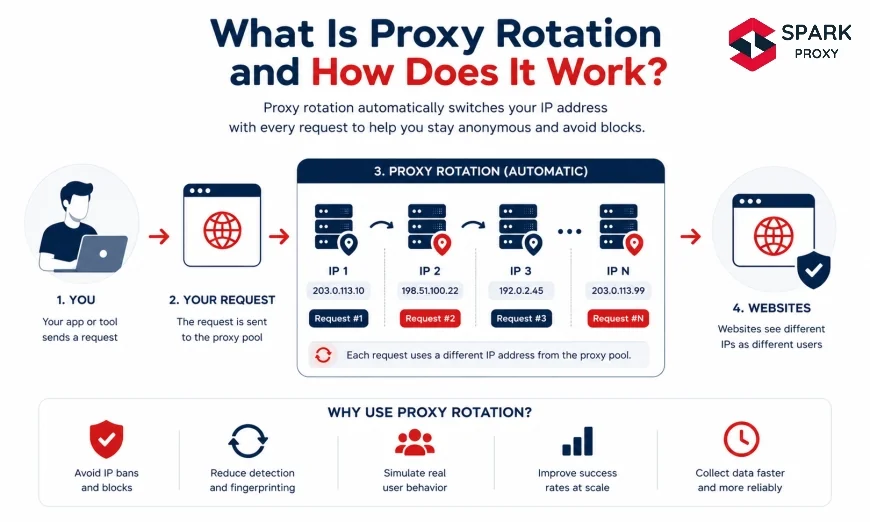

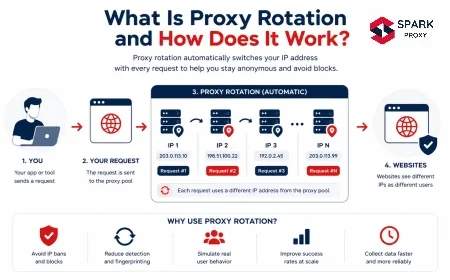

The basic flow is straightforward. Your client sends every request to a single proxy endpoint — the rotating proxy gateway. The gateway selects an exit IP from its pool, routes your request through that IP to the target server, and returns the response. From the target's perspective, each request originates from a different IP address.

Figure: Backconnect proxy rotation architecture. Your client connects to one gateway endpoint; the gateway selects exit IPs from its pool on each request.

This is the backconnect proxy model. The term describes the two-leg journey: your request travels forward from client to gateway, then the gateway connects through an exit node to the destination. You configure one host and port; the gateway manages the pool.

[INTERNAL-LINK: anchor="proxy protocols and SOCKS5 configuration" target="understanding-proxy-protocols-http-https-socks5"]

For the client-to-gateway leg, use SOCKS5 for raw TCP or UDP traffic and HTTP/HTTPS for standard web requests. Both work with rotating gateways.

Citation: MDN Web Docs — "Proxy servers and tunneling" — developer.mozilla.org

Rotation strategy determines when the exit IP changes. Choosing the wrong one matters: rotating on every request breaks multi-step workflows that require state continuity; holding one IP too long accumulates enough requests to hit rate limits.

All four proxy types support rotation. They differ in detection risk, latency, cost, and appropriate workloads.

| Proxy Type | IP Source | Detection Risk | Typical Latency | Best Use Case |

|---|---|---|---|---|

| Datacenter | Cloud / hosting ASNs | High on protected targets | 20–80 ms | High-volume crawls on unprotected sites |

| Residential | Real ISP-assigned addresses | Low | 100–300 ms | E-commerce, travel pricing, SERP scraping |

| ISP (Static Residential) | ISP-registered, DC-hosted | Low–Medium | 30–100 ms | Account management, sessions requiring IP consistency |

| Mobile | Carrier 4G/5G allocations | Very Low | 200–600 ms | Highest-protection targets, mobile-first sites |

Detection risk reflects how likely a site's anti-bot system has that IP's ASN flagged as a hosting provider. Residential and mobile IPs come from ISP allocations — they pass the first filter that blocks datacenter ranges outright.

[INTERNAL-LINK: anchor="proxy types explained" target="what-is-a-serp-scraping-proxy"]

[ORIGINAL DATA] Pool sizing is straightforward arithmetic, but most guides skip the formula.

Minimum pool size = Peak requests per hour ÷ Site rate limit per IP per hour

Example: you need to crawl 50,000 product pages per hour. The target site rate-limits at 60 requests per IP per hour — a common threshold for sites with active anti-scraping protection. Minimum pool: 50,000 ÷ 60 = 834 IPs.

That's the floor. Real-world factors push the practical target higher:

| Factor | Why It Increases Your Pool Requirement |

|---|---|

| IP retirement | Providers cycle IPs; not all contracted IPs are active simultaneously |

| Geographic targeting | Localized scraping may need IPs in specific countries or cities — the country sub-pool is smaller than the global pool |

| Reputation degradation | Heavily used IPs accumulate negative reputation and start returning higher block rates |

| Burst capacity | Crawl jobs rarely run at a perfectly even request rate — peak-hour spikes can be 3–5× the average |

A sensible real-world target for the example above is 8,000–16,000 residential IPs (10–20× headroom). With a quality provider at that headroom, success rates consistently exceed 95%.

For lighter workloads — SERP rank tracking for 1,000 keywords per day — requirements are much smaller. 1,000 requests ÷ 100 requests per IP per day = 10 IPs minimum; 50–100 IPs gives comfortable headroom.

Client-side setup is identical regardless of rotation strategy — that complexity lives at the gateway. You configure one proxy host and port; the gateway selects which exit IP each request uses.

Python — requests, per-request rotation:

```python

import requests

proxy = {

"http": "http://user:[email protected]:10000",

}

response = requests.get("https://example.com/products", proxies=proxy, timeout=15)

print(response.status_code)

```

Python — sticky session for a multi-step workflow:

```python

import requests

SESSION_ID = "checkout-flow-001"

proxy = {

"http": f"http://user-session-{SESSION_ID}:[email protected]:10000",

}

All requests in this block exit via the same IP

with requests.Session() as session:

session.proxies = proxy

session.get("https://example.com/login")

session.post("https://example.com/cart/add", data={"sku": "ABC123"})

session.post("https://example.com/checkout")

```

Python — error-triggered rotation with retry logic:

```python

import requests

import random

import time

PROXY_LIST = [

"http://user:[email protected]:10000",

"http://user:[email protected]:10001",

"http://user:[email protected]:10002",

]

def fetch_with_rotation(url, max_retries=3):

for attempt in range(max_retries):

proxy_url = random.choice(PROXY_LIST)

proxies = {"http": proxy_url, "https": proxy_url}

try:

resp = requests.get(url, proxies=proxies, timeout=15)

if resp.status_code == 429:

Rotate to a fresh proxy on rate limit signal

time.sleep(float(resp.headers.get("Retry-After", 2)))

continue

return resp

except requests.RequestException:

continue

return None

```

curl — single request through rotating gateway:

```bash

curl -x http://user:[email protected]:10000 \

https://example.com/products \

-A "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36"

```

For SOCKS5 gateways, substitute socks5h://user:[email protected]:10000. The h suffix routes DNS resolution through the proxy server rather than locally — this prevents DNS leaks that could expose your machine's location even when the request exits through the correct IP.

[INTERNAL-LINK: anchor="SOCKS5 DNS and the socks5h scheme" target="understanding-proxy-protocols-http-https-socks5"]

No — and this is the most common misconception in proxy configuration.

[PERSONAL EXPERIENCE] The pattern appears repeatedly: a developer implements per-request residential IP rotation, gets clean results for several hours, then starts seeing CAPTCHA walls even with fresh IPs on every request. IP rotation removed the rate-limit signal, but the anti-bot system scored the requests as suspicious based on other signals.

IP rotation addresses one detection layer. Modern anti-bot systems evaluate several independent signals simultaneously:

| Signal | What It Reveals | Mitigation |

|---|---|---|

| Source IP | Hosting ASN, IP reputation, geolocation mismatch | Residential/mobile proxy rotation |

| TLS fingerprint | Client library — Python requests has a distinct JA3 hash vs Chrome | TLS fingerprinting libraries (curl-impersonate, tls-client) |

| HTTP/2 fingerprint | Browser vs bot framework header priority order | HTTP/2 clients with browser-matching frame settings |

| User-Agent + Accept headers | Browser type and version; mismatched UA and Accept-Encoding is a strong bot signal | Full browser header set consistent with the declared UA |

| Request timing | Requests at machine-speed regularity with zero human variance | Jittered delays — random.uniform(0.8, 4.5) seconds between requests |

| Cookie + JavaScript state | Empty cookie jar; JS challenges not executed | Headless browser (Playwright, Puppeteer) for JS-heavy targets |

IP rotation is necessary but not sufficient. For targets running Cloudflare Bot Management or DataDome, you also need the correct IP type (residential or mobile), realistic header sets, and request timing that passes behavioral scoring. Each layer is independent — fixing one doesn't automatically fix the others.

Proxy rotation solves the fundamental attribution problem in large-scale data collection. When each request to a target server originates from a different IP address, per-IP rate limits stop being a practical constraint, and simple IP-reputation blocking becomes ineffective.

The mechanics are simple: a backconnect gateway accepts your requests on one endpoint and routes them through a pool of exit IPs. What separates reliable results from constant blocks is strategy — which rotation mode you choose, what IP type you rotate through, and how you size the pool relative to actual request volume.

IP rotation handles one detection layer. For targets with active anti-bot systems, combine rotation with correct IP type (residential or mobile), consistent header sets matching your declared browser, and request timing with human-variance jitter. Each layer is independent and each one matters.

[INTERNAL-LINK: anchor="start rotating with SparkProxy residential and mobile proxies" target="pricing"]

SparkProxy operates a rotating proxy network covering 190+ countries. Backconnect gateways support per-request rotation, sticky sessions up to 30 minutes, and geo-targeting at country and city level. Start your free trial →
